WEBS-45J1

Features

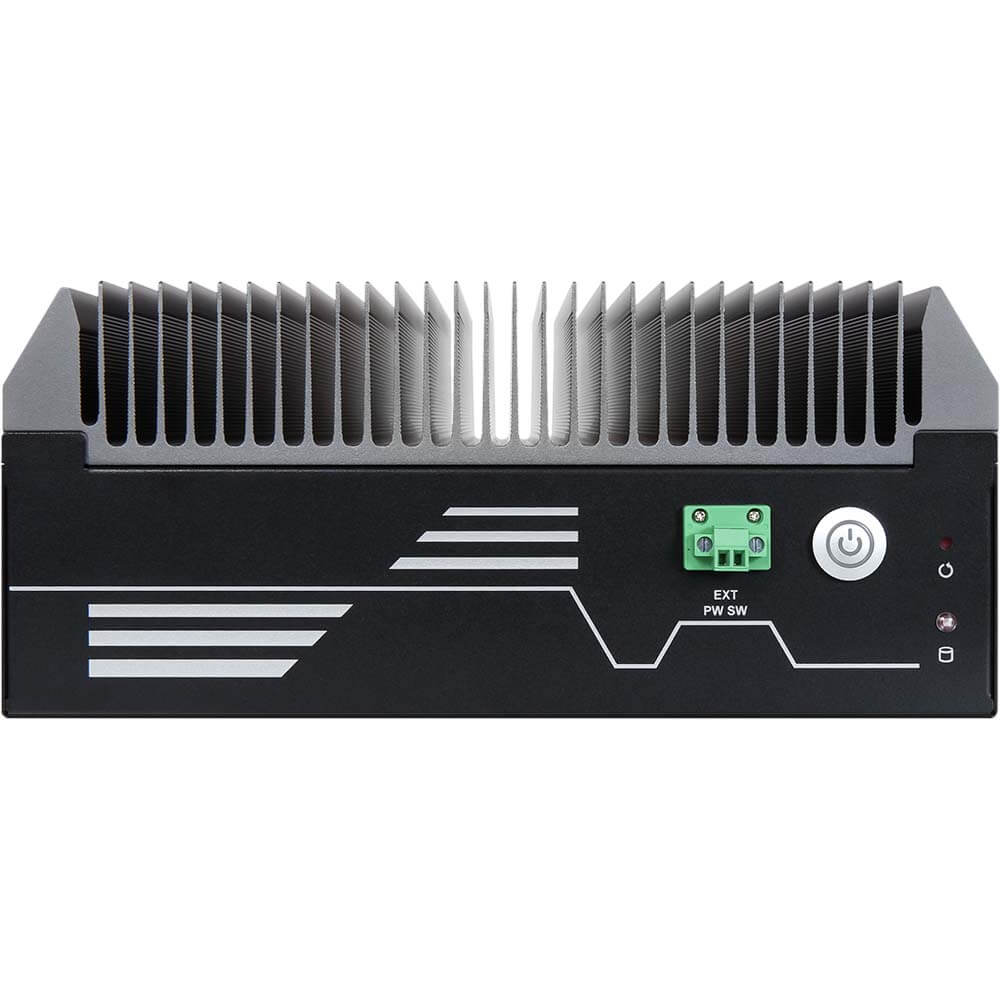

Embedded Rugged Fan-less System with 13th/12th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board


  • Support 13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors
  • Support 64GB DDR5 4800 SO-DIMM
  • Support triple DP and one HDMI® display
  • Support One M.2 E Key, One M.2 M Key
  • Support 4x COM ports (1x RS-232/422/485)
  • 2x Antenna hole for WiFi module to use

Description

The WEBS-45J1 builds on Intel® desktop Q670E chipset and takes advantages of 13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR5 memory and 2x SATA Ports for storage. Support two Gigabit Ethernet ports, One M.2 E Key, One M.2 M Key socket. The WEBS-45J1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.

Specification

 General

Specifications
System
M/B WADE-8213
CPU Supporting Intel®13th/12th Gen Core™ CPU (LGA1700 socket, 35W TDP)

  • Intel® Core™ i9-13900TE
  • Intel® Core™ i7-13700TE
  • Intel® Core™ i5-13500TE
  • Intel® Core™ i3-13100TE
  • Intel® Core™ i9-12900TE
  • Intel® Core™ i7-12700TE
  • Intel® Core™ i5-12500TE
  • Intel® Core™ i3-12100TE
BIOS AMI uEFI BIOS
Memory Up to 64GB DDR5 4800 on two SO-DIMM sockets
Storage 2x SATAIII ports
Watchdog Timer Programmable watchdog timer
TPM TPM 2.0 (Optional)
H/W Status Monitor System monitor (Voltage and Temperature)
Expansion
  • 1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless
  • 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD



Specifications
External I/O
Serial Port 4 x COM ports ( 1 x RS- 232/422/485)
Display
  • 3x DP, resolution up to 8K
  • 1x HDMI®
USB
  • 1x USB 3.2 Gen 2 (2x Type A+ 1x Type C)
  • 1x USB3.2 Gen1
  • 4x USB 2.0
Audio Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller
Ethernet
  • Intel® I210AT(1GbE) and Intel® I225LM(2.5GbE) Ethernet controller
  • 2x RJ45 connectors
GPIO 1x Programmable 8-bit Digital I/O
Other
  • 2x Antenna hole for WiFi module
  • 1x EXT Power Switch



Specifications
Power Supply Unit
Power Input DC 12V ~ 36V with 3-pin Terminal Block Connector



Specifications
Environmental
Operation Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 80°C
Relative Humidity 40°C, 95%RH non-condensing
Operation Vibration 1Grms/10-500Hz, IEC 60068-2-6
Operation Shock 50G, 11 msec, IEC 60068-2-27



Specifications
Mechanical
Dimension 253 (W) x 201(D) x 111.8 (H) mm
Weight 5.25Kg
Mounting Wall mounting
