GMS-6310

Features

4x USB, 6x COM port, 1x 2.5” SSD, & M.2 2242 / 2280 Storage
8x DI, 8x DO, & 8x intrusion inputs
HDMI 2.0, HDMI 1.4, Dual DP 1.4 ( V1000 only )
Lock, & security seal design
Antenna hole for M.2 2230 Wi-Fi

Description

GMS-6310, an up-to-date solution with advanced and feature-rich system designs. Take gaming functions for example, it’s extremely rare to see any of them on a Mini-ITX standard board, but GMS-6310 is equipped with TPM 2.0, 8x intrusion inputs, I2C FRAM, H/W unique ID, Software defined LED and 8x DIDOs. What’s more, if you are a fan for HDMI port, GMS-6310 has two among the 3/4 display outputs, HDMI 2.0 and HDMI 1.4.

Specification

General

Processor	AMD V1000 / R1000 SoC
Memory	Dual Channel ECC/ non-ECC DDR4 2400 SO-DIMM, up to 32GB
Storage Devices	2x SATA III M.2 2242 / 2280, SATA / NVME
Watchdog Timer	Programmable from 1 ~255 sec
Hardware Monitoring	Fan speed Temperature Voltage
Expansion Interface	1x M.2 Key E for Wi-Fi
Gaming function	TPM 2.0 on board 8x Intrusion Detection Pin 8x Digital Input 8x Digital Output, 500mA, 50V Open Drain. 1x 64K Bit FRAM 1x Software Define LED H/W UID

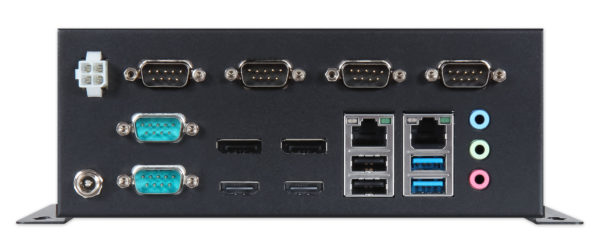

I/O Interface

Audio	Audio Jack on rear IO Line in / Line out / MIC in
Ethernet	2x GbE LAN
Serial Port	1x RS-232/422/485 on rear I/O (9-bit Support) 1x RS-232 on rear I/O (9 bit Support) 3x RS-232 Box Header (9 bit Support) 1x RS-232 Box Header (9 Bit Support)
USB	1x RS-232/422/485 o- 1x RS-232/422/485 on rear I/O (9-bit Support) 1x RS-232 on rear I/O (9 bit Support) 3x RS-232 Box Header (9 bit Support) 1x RS-232 Box Header (9 Bit Support) 2x USB 3.0 on rear I/O 2x USB 2.0 on rear I/O 4x USB 2.0 internal header 1x USB 2.0 internal Type An rear I/O (9-bit Support)

Mechanical & Environment

Dimension	Board: 170(L)mm x 170(W)mm System: 180(L)mm x 180(W)mm x 70(H)mm
Power Requirement	12V DC IN
Environment	Board Operation Temperature: 0°C ~ 60°C System Operation Temperature: 0°C ~ 40°C Storage Temperature: -20°C ~ 85°C Relative Humidity: 10% ~ 95%, non condensing

Graphic

Graphic Controller	AMD Ryzen™ V1000 with Radeon™ Vega 8 Graphics AMD Ryzen™ R1000 with Radeon™ Vega 3 Graphics
Display Interface	2x Display Port : Up to 3840 x 2160 (4K) (V1000) 1x Display Port : Up to 3840 x 2160 (4K) (R1000) 1x HDMI 2.0: Up to 3840 x 2160 (4K) 1x HDMI 1.4: Up to 3840 x 2160 (4K)
