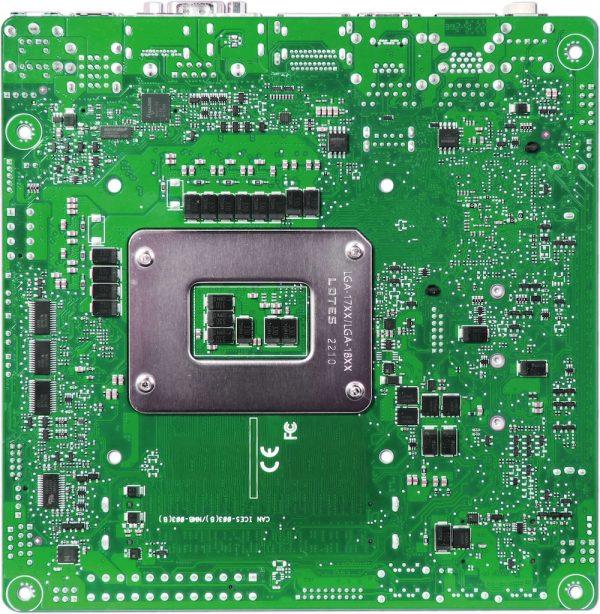

WADE-8213-Q670E

Features

Intel® 12th/13th Gen Core™ Processors based Mini-ITX Board with DDR5 SO-DIMM up to 64GB, eDP/LVDS, 3x DP Ports, HDMI®, Dual GbE LAN, 5x COM Ports

  • Intel® 10th Gen Core™ Processors support
  • Supports two SO-DIMMs support DDR4 Non-ECC SDRAM up to 64GB
  • Supports dual Ethernet(one port support 1G/one port support 2.5G), five COM Ports, ten USB Ports, four SATA III Ports and Audio
  • Support one PCIe x16(Gen3), one M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD, one M.2 Key B 3042/3052 with USB 3.0 Signal and one SIM Card socket

Description

WADE-8213-Q670E is based on Intel® Q670E chipset and 12th/13th Gen Intel® Core™ i3/i5/i7/i9 desktop processors. It supports multiple display outputs, options of legacy features for industrial applications, GPIO ports, dual LAN as well as rich expandability with PCIe Gen5, M.2 M and M.2 E keys. Featuring rich I/O capabilities and advanced connectivity on a smaller and thinner space-saving platform, the Portwell WADE-8213-Q670E is ideal for a wide range of embedded applications.

Ordering Guide

AB1-3P58

 (R).WADE-8213-Q670E ATX ESB.Q670E w/o ECC LGA1700.w/DDR5 /eDP/LVDS/Thripal DP/HDMI®/Dual GbE/COM/Audio/USB

Specification

General

Specifications
General
Processor Intel® 12th/13th Gen Core™ Processors CPU in LGA1700 package
Chipset Intel® Q670E
BIOS AMI uEFI BIOS
Memory Support up to 64GB DDR5 4800 on two SO-DIMM socket
Storage Devices
  • Supports 4x SATA III ports
  • Supports RAID 0, 1, 5, 10
Watchdog Timer Programmable watchdog timer
Hardware Monitoring System monitor(Voltage, Fan Speed and Temperature)
Expansion Interface
  • 1x PCIe x16 Gen 5
  • 1x M.2 Key E 2230 with PCIe x1 and CNVI for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
I/O INTERFACE
Audio Audio Jack on rear I/O with Line-out / Line-in with Realtek ALC897 audio controller
Ethernet
  • Intel® I210AT (1GbE) and Intel® I225LM (2.5GbE) Ethernet controller
  • 2x RJ45 connectors on rear I/O
Serial port
  • 2x RS232/422/485 ports (one port on rear I/O and one port on board header)
  • 3x RS232 port on pin header
USB
  • 3x USB3.2 (Gen2) on rear I/O(2x Type A + 1x Type C)
  • 1x USB3.2 (Gen1) on rear I/O
  • 1x USB3.2 (Gen1) on board(Vertical Type-A)
  • 2x USB3.2 (Gen1) on pin header
  • 4x USB2.0 on rear I/O
  • 2x USB2.0 on pin header
GPIO 8-bit configurable controlled by embedded controller
DISPLAY
Graphic Controller Intel® UHD Graphics 770 supports DirectX 12, OpenGL 4.6
Display Interface
  • DP: Three DP ports on rear I/O, resolution up to 8K
  • eDP/LVDS: One eDP/LVDS port on board header, switch by BIOS
  • HDMI®: One HDMI® connector on rear I/O
Mechanical & Environment
Dimension 170mm(L) x 170mm(W)
Power Supply ATX power input
Environment
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 5% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C
